Door Systems
Rapid Shutters
RAMOT Rapid Shutters minimize air transfer between areas and provide safe solutions with safety photocell and interlock while ensuring fast transition.
In our time-race era, the fast opening and closing of doors is very important for things to go smoothly.

Especially in sectors where the cold chain is of great importance (in the food sector, especially in meat and dairy products, pharmaceutical and agricultural sectors, etc.), the doors must have high maneuverability. This ability affects both the healthy preservation of the products in the facility and the reduction of heating-cooling costs.

High Speed RollUp Doors, which we designed as RAMOT, are designed for heavy traffic areas where fast opening and closing maneuvers are required. It is very useful for the food (red meat, white meat, fish and aquaculture), agriculture, logistics, automobile and pharmaceutical sectors.

Support for sustainability
Since it maintains heat transitions between areas, it allows the heating cooling systems to operate less. In this way, as it causes less energy consumption, it also helps to reduce the carbon emissions emitted to the world during energy production.

Technical Specifications
RAMOT brings continuous flow and stable air conditions for your business at the zones it works in between with its superior reliability by low maintenance cost and high performance.
  • Maximum passage can be 4000 x 6000 mm.
  • CE certified motor group has IP44 protection class.
  • The motor voltage is 230V / 380V according to the operating traffic and door dimension.
  • The control panel has an IP55 LCD screen.
  • The opening speed is accelerated in the range of 0.70 – 1.3 m/sec which is adjustable.
  • The shutdown rate is constant at 0.70 m/sec which is also adjustable.
  • The thickness of double gauge body slats varies between 2x0.5mm and 2x0.8mm.
  • High density XPS Polyurethane foam provides maximum heat isolation between zones.
  • Wind resistance is class 1/2.
  • Side guides can either be aluminum or galvanised steel.
  • Safety photocell and interlock system are included in the standard safety package.
  • Sudden impact, loop detector, remote control and hand proximity sensor are available as options.
  • All shutters are delivered with installation kits.
  • ISO-CE-TUV Certified.
High Speed Door Technical Detail

Featured Properties
Long-lasting, user-friendly, high-speed…
Manufactured and certified according EN safety regulations applicable in European countries and all over the world. Long operational life by anodized aluminum guides, stainless steel frame-feet and screws, high wind and heat resistance body slats.

Programming with the control panel is simple and user safety is high thanks to the photocell, detector and sensors.
Opening speed of 0.70 – 1.3 m/sec
High Speed Operation

Single / Double Gauge Options

Various Gauge Thickness

Insulation Option

Extra Security Hardware

CE/ISO/TUV Certified

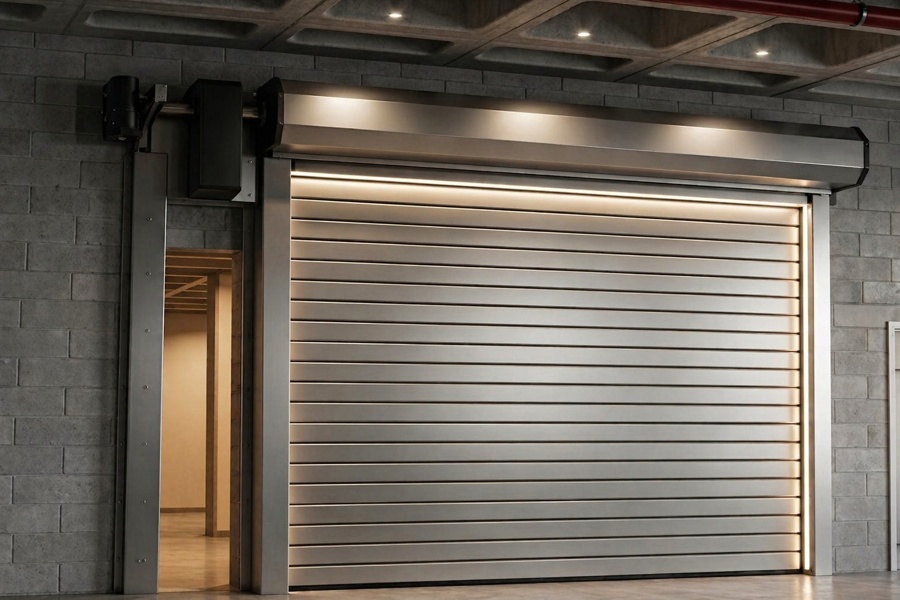

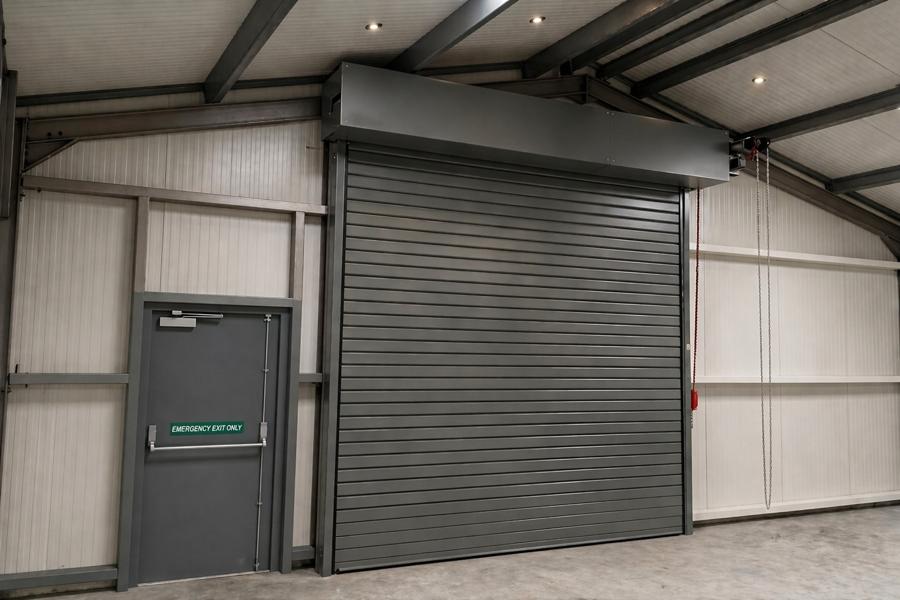

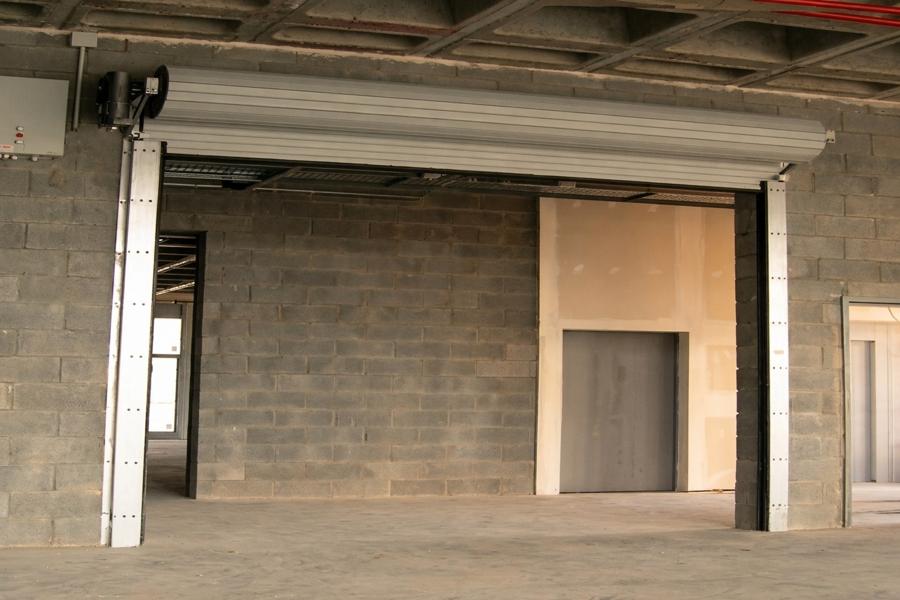

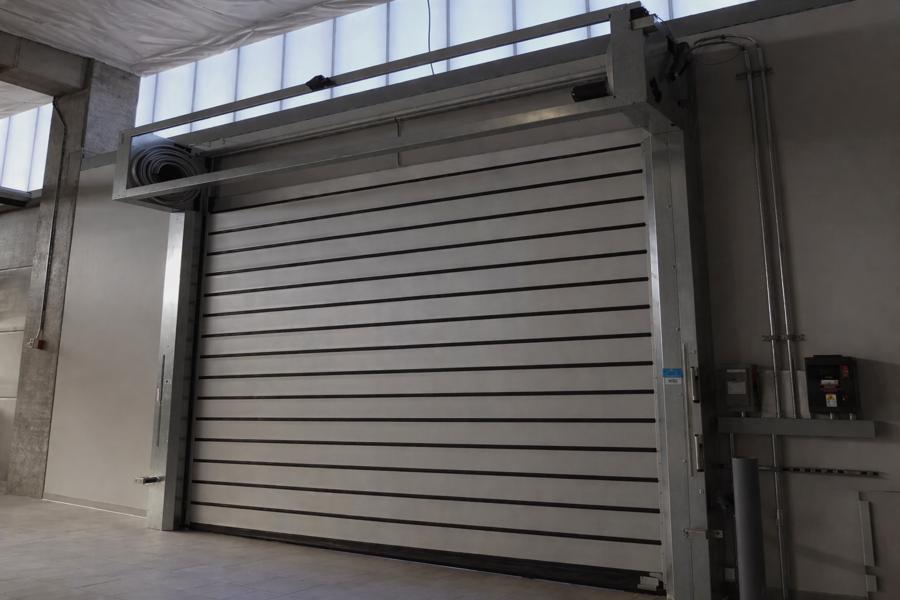

Product Images
