Door Systems
Industrial RollUp Doors
MOTTO Industrial RollUp Doors, which can be produced with galvanized steel, stainless steel or aluminum material with or without insulation, providing safe solutions to huge openings, serving a wide range from garage doors to loading ramps, are ideal for businesses that prioritize robustness and performance.
Our official brand MOTTO RollUp doors are the ideal solution for crossings between compartments, loading ramps and closing various external openings. It is not limited to standard sizing.

Industrial Rolling Shutters are suitable for all businesses and buildings that want to improve safety without compromising performance or appearance.

Technical Specifications
Excellent choice for countless industries
  • Body profiles - Slats can be produced by steel, stainless steel or aluminum either for single or double gauge form.
  • Body profiles are single gauge or polyurethane / rockwool filled double gauge.
  • Single gauge thickness varies between 0.6mm to 1.2mm, while double gauge varies between 2x0.6mm to 2x1.0mm.
  • Single gauge body slats can be configured up to 14mt width or up to 16mt height. (max width does not match with max height)
  • Double gauge body slats can be configured up to 11mt width or up to 18mt height. (max width does not match with max height)
  • Optionally submitted storm anchors for double gauge body slats provides extra wind pressure resistance.
  • Optionally submitted dry contact safety edge on base profile provides extra security by touch sense ability.
  • Optionally submitted photocell beam along-width provides extra security for transition traffic.
  • Noise and friction losses have been minimized with rubber gasket and hairbrush on guide profiles.
  • EPDM rubber gasket on base profile provides quiet closing and isolation against dirt, dust or any particles.
  • The industrial type motor can be preferred as 220V or 380V according to the operating traffic.
  • Manual operation is available by hoist chain in case of energy failure.
  • Production is available in any RAL color by electrostatic powder coating.
  • Operating options are available with remote control, push button or any kind of access control.
  • Rolling cover box made of galvanised steel sheet is submitted optionally.
  • All doors are delivered with installation kits.
  • ISO-CE-TUV Certified.

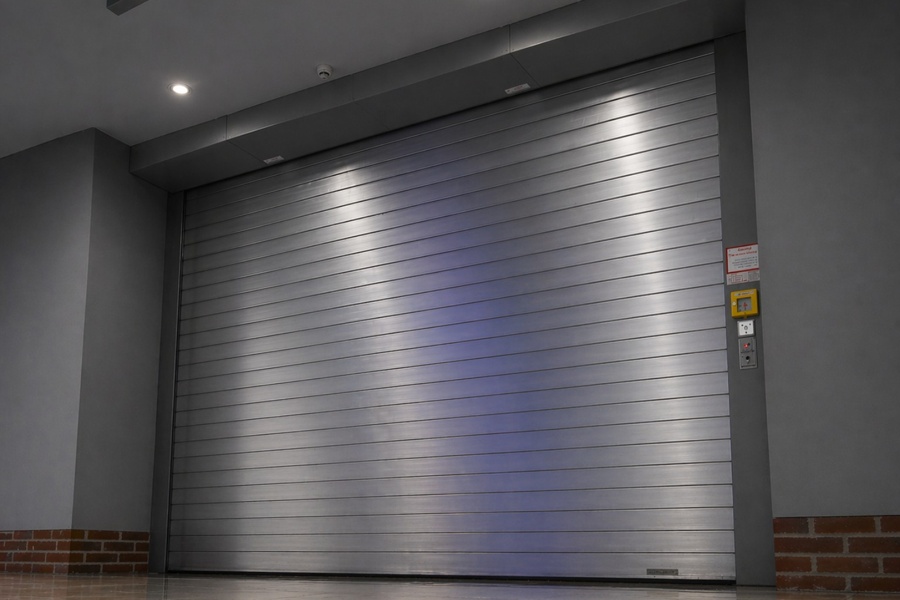

Industrial Door Technical Detail

Featured Properties
Product quality, high thermal-acoustic insulation, stylish appearance.
MOTTO Rolling Shutters operate via the motor located on the interlocking slats. When a chain connected to the motor moves a rotating drum, the slats lift off the ground and wrap around a cylindrical support. The installations are connected to the side brackets taking place over vertical rails and to a horizontal slats at the bottom of the lower slats. These components ensure that each part is wrapped evenly when the door is in the open position.

It is risk-free and safe to use thanks to photocell and touch security systems.

Perfect for all sectors that require the division of different work environments, garage doors for villas, parking lots and garages, loading ramps, as well as warehouses, airports, factories, military services and other retail facilities. It works flawlessly in any climatic condition. It is robust and safe, extremely difficult to open from the outside, so it is also a deterrent against theft.

Single / Double Gauge Option

Thermal Insulation Option

Various Gauge Thickness

Manual Operation for Energy Cut off

High Wind Resistance

CE-ISO-TUV Certified
